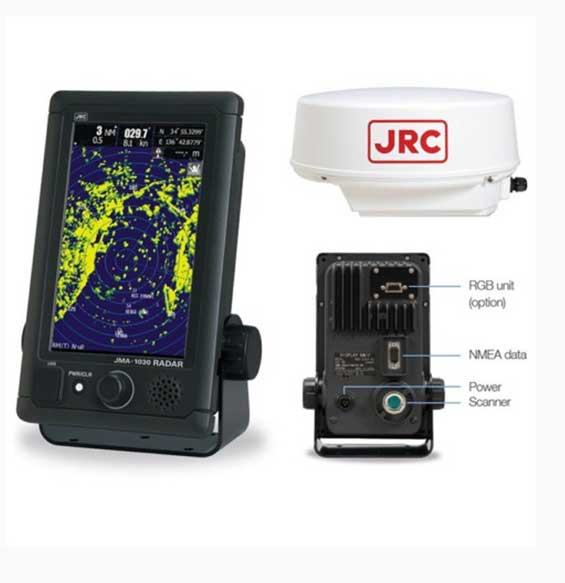

MARINE RADAR

7-inch color touch operation
System-on-Chip technology
AIS and MARPATM standard
Man overboard

Model: JMA-1032
Display type: Raster scan PPI
Scanners: NKE-1066
Antenna length: 1.5 ft (450 mm radome)
Output power: 4 kW
Transmitting frequency: 9410 ±30 MHz
Beam width: Horizontal 5.2°, Vertical 25°
Rotation speed: 16, 20, 24, 27, 30, 36, 42, 48 rpm
Adding range scale: 1, 2, 4, 8, 16, and 32*1 NM
Display 7-inch wide VGA (WVGA) color LCD touch display (800 by 480 pixels)
Operation: Touch, buttons and push/rotary knob
Presentation mode: RM: Head/North/Course-up, TM: North/Course-up
Trail indication: 15 sec to 15 min, 30 sec to 30 min, 1 min to 1 hr, 30 min to 24 hr, continuous
Off center: Move to 4 pre-defined coordinates from the default center position
Guard zone: Built in
Alarms: 8x scanner, 6x display, 16x receive data
Tracking targets*2: 10 built-in (automatic tracking), Tracking range up to 20 NM
AIS targets*2: 50 built-in (stores up to 500 ship static data)
Input sentences: GGA, RMC, RMA, GNS, GLL, VTG, DPT, DBT, MTW, VDM, VDO, ALR, MWV, VWT, VWR, RMB, BWC, BWR (navigation) THS, HDT, HDG, HDM (bearing), VBW, VHW (speed)
Output sentences: RSD, OSD, TTM, TLL, TTD, GGA, RMC, GNS, GLL, VTG, THS, HDT
Output signals: External buzzer, external monitor (optional RGB unit NQA-2447 required)
USB: Copy/restore internal settings, software update
Languages: English, Spanish, Turkish, Russian, Japanese, Indonesian, Thai, Malaysian, Vietnamese, Chinese, Korean
Power/Consumption: DC12-24 VDC -10 %+30 %, Maximum 50 W
Ambient conditions: Operation temperature: -25 to 55 °C (scanner), -15 to 55 °C (display)
Relative humidity: 0 to 93 % non-condensing
Waterproof/dustproof: IP26 (scanner), IP55 (display)*3
